Alpha Vaults can be configured to either be permissionless or permissioned.

For Permissionless Alpha Vaults, anyone can deposit assets into the Alpha Vault after creation.
For permissioned Alpha Vaults, only whitelisted addresses can deposit assets into the Alpha Vault after creation. There are 2 types of permissioned Alpha Vaults:
- PermissionedWithAuthority - In this mode, only the Alpha Vault creator can create escrow account with max_cap. This allows the creator to easily use a permissioned (with whitelist) setup without having to use the merkle tree. Creator needs to pay SOL rent for each escrow account for the whitelisted wallets, so this Alpha Vault whitelist mode is suitable for scenarios where there are very few whitelisted addresses (e.g. <=100). If they need to support a lot more whitelisted addresses, they should still use the merkle tree (PermissionWithMerkleProof whitelist mode).
- PermissionedWithMerkleProof - In this mode, only wallets that are whitelisted can deposit into the Alpha Vault. CSV file containing the list of whitelisted wallets needs to be provided by the project to Meteora, for the Merkle proof to be hosted by Meteora and shown on the UI. Alpha Vault deposits should not open until the Merkle proof is hosted by Meteora.

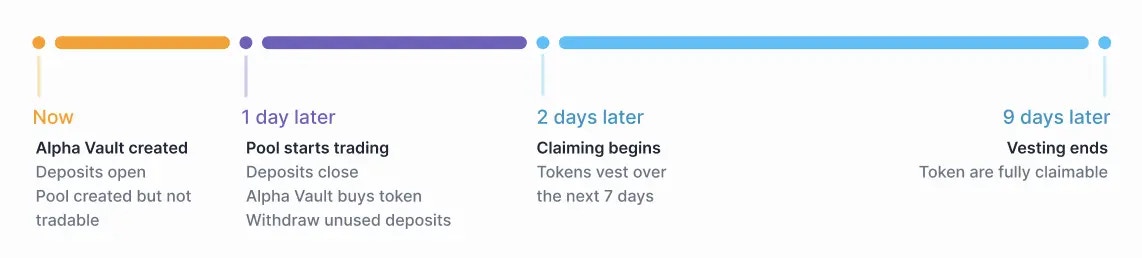

Example Timeline of an Alpha Vault

Code Examples

Creating an Alpha Vault

Create DAMM V1 Pool with Permissionless Alpha Vault

This example shows how to create a new DAMM v1 Pool that also adds a permissionless Alpha Vault.

You have to find a pool config and vault config that meets your requirements. Please contact us on discord if you need new pool configs or vault configs.

Currently, only SOL or USDC is accepted as the quote token when initializing a DAMM v1 Pool with Alpha Vault in a permissionless setup.

import {
  clusterApiUrl,
  Connection,
  Keypair,
  PublicKey,
  sendAndConfirmTransaction,
  SYSVAR_CLOCK_PUBKEY,
} from "@solana/web3.js";
import AlphaVault, { DYNAMIC_AMM_PROGRAM_ID, PoolType, VaultMode } from "..";
import AmmImpl from "@meteora-ag/dynamic-amm-sdk";
import {
  ActivationType,
  Clock,
  ClockLayout,
  createTokenAndMint,
  loadKeypairFromFile,
} from "./utils";
import dotenv from "dotenv";
import { BN } from "bn.js";
import { derivePoolAddressWithConfig } from "@meteora-ag/dynamic-amm-sdk/dist/cjs/src/amm/utils";

dotenv.config();

async function createDummyMints(connection: Connection, payer: Keypair) {
  console.log("Creating mint A");
  const mintAInfo = await createTokenAndMint(
    connection,
    payer,
    6,
    100_000_000_000
  );

  console.log("Creating mint B");
  const mintBInfo = await createTokenAndMint(
    connection,
    payer,
    6,
    100_000_000_000
  );

  return {
    mintAInfo,
    mintBInfo,
  };
}

/**
 * @param connection
 * @param creator
 * @param activationType Pool activation based on time or slot
 * @param maximumActivationDuration Maximum duration for pool to be activation after creation
 * @param minimumLockDuration Minimum duration for bought token be locked
 * @param maximumLockDuration Maximum duration for bought token to be locked
 * @param minimumVestingDuration Minimum duration for bought token to be vested
 * @param maximumVestingDuration Maximum duration for bought token be vested
 * @param vaultMode Vault mode: fcfs or prorata
 */
async function getPoolConfigByRequirement(
  connection: Connection,
  creator: PublicKey,
  activationType: ActivationType,
  maximumActivationDuration: number,
  minimumLockDuration: number,
  maximumLockDuration: number,
  minimumVestingDuration: number,
  maximumVestingDuration: number,
  vaultMode: VaultMode
) {
  // 1. Pool configs that can be used by anyone to create pool
  const publicPoolConfigs =
    await AmmImpl.getPoolConfigsWithPoolCreatorAuthority(
      connection,
      PublicKey.default
    );

  // 2. Pool configs that can only be used by specific pubkey to create pool
  const creatorPoolConfigs =
    await AmmImpl.getPoolConfigsWithPoolCreatorAuthority(
      connection,
      creator
    );

  // 3. Look for pool configs that have vault support
  const poolConfigsWithVaultSupport = [
    ...publicPoolConfigs,
    ...creatorPoolConfigs,
  ].filter((config) => config.account.vaultConfigKey != PublicKey.default);

  console.log(
    `Gotten ${poolConfigsWithVaultSupport.length} usable pool configs with vault support`
  );

  const configFuture =
    vaultMode === VaultMode.FCFS
      ? AlphaVault.getFcfsConfigs(connection)
      : AlphaVault.getProrataConfigs(connection);

  const configs = await configFuture;

  for (const programAccount of poolConfigsWithVaultSupport) {
    const { account } = programAccount;
    // 3.1 Pool activation type and duration matches
    if (
      account.activationType == activationType &&
      account.activationDuration.toNumber() >= maximumActivationDuration
    ) {
      const vaultConfig = configs.find((c) =>
        c.publicKey.equals(account.vaultConfigKey)
      );

      if (!vaultConfig) {
        continue;
      }

      const startVestingDuration =
        vaultConfig.account.startVestingDuration.toNumber();
      const endVestingDuration =
        vaultConfig.account.endVestingDuration.toNumber();

      const vestingDuration = endVestingDuration - startVestingDuration;

      // 3.2 Vault activation type, lock and vesting duration matches
      if (
        startVestingDuration >= minimumLockDuration &&
        startVestingDuration <= maximumLockDuration &&
        vestingDuration >= minimumVestingDuration &&
        vestingDuration <= maximumVestingDuration &&
        vaultConfig.account.activationType == activationType
      ) {
        return programAccount;
      }
    }
  }

  return null;
}

async function createDynamicPoolWithPermissionlessVault(
  connection: Connection,
  payer: Keypair
) {
  const { mintAInfo, mintBInfo } = await createDummyMints(connection, payer);

  // Pool and vault requirement
  const maximumActivationDuration = 86400; // 1 day
  const minimumLockDuration = 60 * 30; // 30 minutes
  const maximumLockDuration = 86400; // 1 day
  const minimumVestingDuration = 60 * 60; // 1 hour
  const maximumVestingDuration = 60 * 60 * 24 * 7; // 1 week
  const vaultMode = VaultMode.PRORATA;

  // 1. Find pool config where it allow user to create pool with customizable start trading time which start from NOW -> NOW + 24H
  // With lock duration fall between 30 minutes -> 1 days (non customizable)
  // And vesting duration fall between 1 hour -> 1 week (non customizable)
  // And prorata vault
  const poolConfig = await getPoolConfigByRequirement(
    connection,
    payer.publicKey,
    ActivationType.Timestamp,
    maximumActivationDuration,
    minimumLockDuration,
    maximumLockDuration,
    minimumVestingDuration,
    maximumVestingDuration,
    vaultMode
  );

  console.log("Got pool config");
  console.log(poolConfig);

  const clockAccount = await connection.getAccountInfo(SYSVAR_CLOCK_PUBKEY);
  const clock: Clock = ClockLayout.decode(clockAccount.data);

  // Pool start trade after created for 5 hour
  const activationPoint = clock.unixTimestamp.add(new BN(3600 * 5));

  // 2. Create the pool
  const transactions =
    await AmmImpl.createPermissionlessConstantProductPoolWithConfig2(
      connection,
      payer.publicKey,
      mintAInfo.mint,
      mintBInfo.mint,
      new BN(100_000_000),
      new BN(100_000_000),
      poolConfig.publicKey,
      {
        activationPoint,
      }
    );

  console.log("Creating pool");
  for (const tx of transactions) {
    const txHash = await sendAndConfirmTransaction(connection, tx, [payer]);
    console.log(txHash);
  }

  const poolPubkey = derivePoolAddressWithConfig(
    mintAInfo.mint,
    mintBInfo.mint,
    poolConfig.publicKey,
    DYNAMIC_AMM_PROGRAM_ID
  );

  console.log("Pool created", poolPubkey.toBase58());

  // 3. Create the alpha vault
  const initPermissionlessVaultTx = await AlphaVault.createPermissionlessVault(
    connection,
    {
      baseMint: mintAInfo.mint,
      quoteMint: mintBInfo.mint,
      poolType: PoolType.DYNAMIC,
      vaultMode: VaultMode.PRORATA,
      poolAddress: poolPubkey,
      config: poolConfig.account.vaultConfigKey,
    },
    payer.publicKey
  );

  console.log("Creating vault");
  const txHash = await sendAndConfirmTransaction(
    connection,
    initPermissionlessVaultTx,
    [payer]
  );
  console.log(txHash);
}

const connection = new Connection(clusterApiUrl("devnet"));
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to create dynamic pool with permissionless vault
 * Please contact meteora team if the existing pool and vault config doesn't meet the requirement
 * Currently only dynamic pool support permissionless vault
 */
createDynamicPoolWithPermissionlessVault(connection, payer)
  .then(() => {
    console.log("Done");
  })
  .catch(console.error);

Note for token vesting period:

startVestingSlot = poolState.activationSlot + startVestingDuration
endVestingSlot = poolState.activationSlot + endVestingDuration
startVestingPoint: Absolute value, the slot or timestamp that start vesting depend on the pool activation type. If no vesting is required, you should put this as 1 sec after the pool’s activationPoint
endVestingPoint: Absolute value, the slot or timestamp that end vesting depend on the pool activation type. If no vesting is required, this should be the same as startVestingPoint

Creating a Merkle Root Config

Create Merkle Root Config for Permissioned Alpha Vault

This example shows how to create a merkle root config after generating a merkle tree, which is required to verify the whitelisted wallet address data, and enable deposits by whitelisted wallets.

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "../utils";
import { AlphaVault } from "../../alpha-vault";
import dotenv from "dotenv";
import { createMerkleTree, loadWhitelistWalletCsv } from "./utils";
import { BN } from "bn.js";

dotenv.config();

async function createMerkleRootConfig(
vault: PublicKey,
csvPath: string,
payer: Keypair
) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");
const alphaVault = await AlphaVault.create(connection, vault);

// 1. Load whitelist wallet from csv file
const whitelistWallets = await loadWhitelistWalletCsv(csvPath);
console.log("Loaded whitelist wallets");
console.log(whitelistWallets);

// 2. Create merkle tree
const tree = await createMerkleTree(connection, alphaVault, whitelistWallets);

// 3. Create merkle root config
// If the tree grew too large, one can partition it into multiple tree by setting different version
const version = new BN(0);
const createMerkleRootConfigTx = await alphaVault.createMerkleRootConfig(
    tree.getRoot(),
    version,
    payer.publicKey
);

// 4. Send transaction
console.log("Sending transaction");
const txHash = await sendAndConfirmTransaction(
    connection,
    createMerkleRootConfigTx,
    [payer]
);
console.log(txHash);
}

// Permissioned alpha vault
const vault = new PublicKey("ARGqVVUPPqtqH9UeBHvYsv7AtZv623YdEaEziZ1pdDUs");
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);
const whitelistWalletCsvFilepath =
"src/examples/permissioned/whitelist_wallet.csv";

/**
 * This example shows how to create merkle root config for permissioned alpha vault
 */
createMerkleRootConfig(vault, whitelistWalletCsvFilepath, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Depositing into an Alpha Vault

Deposit into an Alpha Vault

This example shows how to deposit SOL or USDC into an Alpha Vault. Deposit can only happen before the end of the deposit period.

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "./utils";
import { AlphaVault } from "../alpha-vault";
import BN from "bn.js";
import dotenv from "dotenv";

dotenv.config();

async function depositToAlphaVault(
vault: PublicKey,
depositAmount: BN,
payer: Keypair
) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");

const alphaVault = await AlphaVault.create(connection, vault);
const depositTx = await alphaVault.deposit(depositAmount, payer.publicKey);

console.log(`Depositing ${depositAmount.toString()}`);
const txHash = await sendAndConfirmTransaction(connection, depositTx, [
    payer,
]);
console.log(txHash);

const escrow = await alphaVault.getEscrow(payer.publicKey);
console.log("Escrow info");
console.log(escrow);
}

// Alpha vault to be deposited to
const vault = new PublicKey("AxRoXRwQgxyaQBMwQsTRrtQ9i9Hd59BKNZBycTcYru5Z");
const depositAmount = new BN(100_000);
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to deposit to alpha vault. Deposit can only happen before the deposit close.
 */
depositToAlphaVault(vault, depositAmount, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Withdrawing from an Alpha Vault

Withdraw from an Alpha Vault

This example shows how to withdraw SOL or USDC from an Alpha Vault. Withdraw function only available before the end of the deposit period, and the function is applicable only when the Alpha Vault is using Pro rata mode.

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "./utils";
import { AlphaVault } from "../alpha-vault";
import BN from "bn.js";
import dotenv from "dotenv";

dotenv.config();

async function withdrawFromAlphaVault(
vault: PublicKey,
withdrawAmount: BN,
payer: Keypair
) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");

const alphaVault = await AlphaVault.create(connection, vault);
const withdrawTx = await alphaVault.withdraw(withdrawAmount, payer.publicKey);

console.log(`Withdrawing ${withdrawAmount.toString()}`);
const txHash = await sendAndConfirmTransaction(connection, withdrawTx, [
    payer,
]);
console.log(txHash);

const escrow = await alphaVault.getEscrow(payer.publicKey);
console.log("Escrow info");
console.log(escrow);
}

// Alpha vault to be withdraw from
const vault = new PublicKey("AxRoXRwQgxyaQBMwQsTRrtQ9i9Hd59BKNZBycTcYru5Z");
const withdrawAmount = new BN(100_000);
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to withdraw from an alpha vault. Withdraw can only happen before the deposit close,
 * and it applicable only when the vault is in Prorata mode.
 */
withdrawFromAlphaVault(vault, withdrawAmount, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Withdraw unused tokens from an Alpha Vault

This example shows how to withdraw unused SOL or USDC deposit from an Alpha Vault after the Alpha Vault has completed the purchase of tokens from the liquidity pool. This is applicable only for Alpha Vault using Pro rata mode.

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "./utils";
import { AlphaVault } from "../alpha-vault";
import BN from "bn.js";
import dotenv from "dotenv";

dotenv.config();

async function withdrawRemainingFromAlphaVault(
vault: PublicKey,
payer: Keypair
) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");

const alphaVault = await AlphaVault.create(connection, vault);
const withdrawRemainingTx = await alphaVault.withdrawRemainingQuote(
    payer.publicKey
);

console.log(`Withdrawing unused fund`);
const txHash = await sendAndConfirmTransaction(
    connection,
    withdrawRemainingTx,
    [payer]
);
console.log(txHash);

const escrow = await alphaVault.getEscrow(payer.publicKey);
console.log("Escrow info");
console.log(escrow);
}

// Alpha vault to be withdraw / refund from
const vault = new PublicKey("AxRoXRwQgxyaQBMwQsTRrtQ9i9Hd59BKNZBycTcYru5Z");
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to withdraw remaining unused deposit from an alpha vault after the vault done buying.
 */
withdrawRemainingFromAlphaVault(vault, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Cranking an Alpha Vault

Cranking the Alpha Vault to buy from DAMM v1 pool

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "./utils";
import { AlphaVault } from "../alpha-vault";
import dotenv from "dotenv";
import { PoolType } from "../alpha-vault/type";

dotenv.config();

async function fillVaultWithDynamicAmm(vault: PublicKey, payer: Keypair) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");

const alphaVault = await AlphaVault.create(connection, vault);

console.log(
    "Pool type: ",
    alphaVault.vault.poolType == PoolType.DYNAMIC ? "Dynamic AMM" : "DLMM"
);

// Dynamic AMM require only single fill transaction
const fillVaultWithDynamicAmmTransaction = await alphaVault.fillVault(
    payer.publicKey
);

console.log("Fill vault with dynamic AMM");
const txHash = await sendAndConfirmTransaction(
    connection,
    fillVaultWithDynamicAmmTransaction,
    [payer]
);
console.log(txHash);
}

// Alpha vault to be cranked
const vault = new PublicKey("AxRoXRwQgxyaQBMwQsTRrtQ9i9Hd59BKNZBycTcYru5Z");
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to crank the vault to purchase base token from the pool, with deposited token from the vault.
 */
fillVaultWithDynamicAmm(vault, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Cranking the Alpha Vault to buy from DLMM pool

This example shows how to crank an Alpha Vault to purchase the base token from the liquidity pool during the crank period. Alpha Vault would purchase tokens using the SOL or USDC deposited into the Alpha Vault earlier.Typically, we have a keeper that cranks the Alpha Vault to automatically purchase tokens from the pool. However, if the auto-crank fails, you can visit this fillVaultDlmm.ts and input your PublicKey.

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "./utils";
import { AlphaVault } from "../alpha-vault";
import dotenv from "dotenv";
import { PoolType, VaultMode } from "../alpha-vault/type";

dotenv.config();

async function fillVaultWithDlmm(vault: PublicKey, payer: Keypair) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");

const alphaVault = await AlphaVault.create(connection, vault);

console.log(
    "Pool type: ",
    alphaVault.vault.poolType == PoolType.DYNAMIC ? "Dynamic AMM" : "DLMM"
);

// DLMM require require one to many transactions
while (true) {
    const fillVaultWithDLMMTransaction = await alphaVault.fillVault(
    payer.publicKey
    );

    if (!fillVaultWithDLMMTransaction) {
    // Vault bought out the whole pool and still have remaining
    break;
    }

    console.log("Fill vault with DLMM");
    const txHash = await sendAndConfirmTransaction(
    connection,
    fillVaultWithDLMMTransaction,
    [payer]
    );
    console.log(txHash);

    await alphaVault.refreshState();
    const inAmountCap =
    alphaVault.vault.vaultMode == VaultMode.FCFS
        ? alphaVault.vault.totalDeposit
        : alphaVault.vault.totalDeposit.lt(alphaVault.vault.maxBuyingCap)
        ? alphaVault.vault.totalDeposit
        : alphaVault.vault.maxBuyingCap;

    if (inAmountCap.eq(alphaVault.vault.swappedAmount)) {
    break;
    }
}
}

// Alpha vault to be cranked
const vault = new PublicKey("AxRoXRwQgxyaQBMwQsTRrtQ9i9Hd59BKNZBycTcYru5Z");
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to crank the vault to purchase base token from the pool, with deposited token from the vault.
 */
fillVaultWithDlmm(vault, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Claiming from an Alpha Vault

Claiming tokens from an Alpha Vault

This example shows how to claim tokens from an Alpha Vault after it has purchased those tokens from the liquidity pool. Claiming can only happen after the start of the vesting period.

Important Reminder: Claim start time should NOT be earlier than Pool activation time

For a new token launch, the project should ensure that token claiming from the Alpha Vault is NOT possible before the launch pool trading activation or before the token starts trading anywhere, whether on a Dynamic AMM or DLMM Pool. If users are able to claim tokens before the launch pool/token starts trading, they may create a separate market with a price that deviates from the project’s preferred launch price.

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "./utils";
import { AlphaVault } from "../alpha-vault";
import dotenv from "dotenv";

dotenv.config();

async function claimBoughtTokenFromAlphaVault(
vault: PublicKey,
payer: Keypair
) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");

const alphaVault = await AlphaVault.create(connection, vault);
const claimTx = await alphaVault.claimToken(payer.publicKey);

console.log("Claiming bought token");
const txHash = await sendAndConfirmTransaction(connection, claimTx, [payer]);
console.log(txHash);

const escrow = await alphaVault.getEscrow(payer.publicKey);
console.log("Escrow info");
console.log(escrow);
}

// Alpha vault to be deposited to
const vault = new PublicKey("AxRoXRwQgxyaQBMwQsTRrtQ9i9Hd59BKNZBycTcYru5Z");
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to claim bought token from an alpha vault. Claim can only happen when the vesting start.
 */
claimBoughtTokenFromAlphaVault(vault, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Close Escrow Account

When a user deposits to the vault, it will create an escrow account, which stores the user info, such as deposit, claimed token, etc. Once user fully claims all tokens, they can close the escrow account.Close escrow can only happen after vesting of tokens is complete, and the escrow has claimed all the bought token. This example shows how to close an escrow account and get rental back.

import {
clusterApiUrl,
Connection,
Keypair,
PublicKey,
sendAndConfirmTransaction,
} from "@solana/web3.js";
import { loadKeypairFromFile } from "./utils";
import { AlphaVault } from "../alpha-vault";
import dotenv from "dotenv";

dotenv.config();

async function closeEscrow(vault: PublicKey, payer: Keypair) {
const connection = new Connection(clusterApiUrl("devnet"), "confirmed");

const alphaVault = await AlphaVault.create(connection, vault);
const claimTx = await alphaVault.closeEscrow(payer.publicKey);

console.log("Close escrow");
const txHash = await sendAndConfirmTransaction(connection, claimTx, [payer]);
console.log(txHash);
}

// Alpha vault to be deposited to
const vault = new PublicKey("AxRoXRwQgxyaQBMwQsTRrtQ9i9Hd59BKNZBycTcYru5Z");
const payer = loadKeypairFromFile(process.env.KEYPAIR_PATH);

/**
 * This example shows how to close an escrow account and get rental back. Close escrow can only happen after vesting is complete, and escrow have claimed all the bought token.
 */
closeEscrow(vault, payer)
.then(() => {
    console.log("Done");
})
.catch(console.error);

Configure Alpha Vault Timings

If you are integrating the Alpha Vault program and need to view and select the predefined timings for the various phases, such as:

Deposit open time (only for FCFS mode currently)
Deposit close time
Vault crank/buy start time
Vault crank/buy end time
Withdraw unused USDC or SOL after crank is successful
Pool Activation time
Token claim start time
Vesting start time
Vesting end time

There must be a ~1 hour 5 minutes period between the deposit close time and the pool activation time.

You can use this config endpoint that has predefined timings created by Meteora.

DAMM v1 Pool Config List

View all available pool configurations for DAMM v1 Pools with Alpha Vault.

DAMM v1 Vault Config List

Browse all vault configurations for DAMM v1 Pools with Alpha Vault.

If your preferred configs are not available in the predefined config lists above, and you want more customization, please contact the Meteora team.

Config endpoint based on Pool Activation Timing

This config endpoint is tied to the pool activation timing, so all timings for the different Alpha Vault phases is derived from the pool activation timing. In this example below, the claim process will start 3600 seconds (1 hour) after pool activation, and it will end 7200 seconds (2 hours) after pool activation. In other words, after the pool starts trading, tokens are locked first and released for claiming 3600 seconds (1 hour) later.

{
  maxBuyingCap: new BN(10000000),
  index,
  startVestingDuration: new BN(3600),
  endVestingDuration: new BN(7200),
  escrowFee: new BN(0),
  individualDepositingCap: new BN(50000),
  activationType: ActivationType.TIMESTAMP,
  depositingPoint: new BN(1028979080),
}

Considerations for Slot Parameters

Alpha Vault Slot Progression

d \rightarrow j \rightarrow p \rightarrow a \rightarrow s \rightarrow e

Current Slot Condition

\text{current\_slot} < p

Alpha Vault will start to buy from the pool from pre_activation_slot (

p

)

Slot Constraints

d + 3000 \leq j

j > \text{current\_slot}

j + 750 = p

p + 9000 = a

a < s

e \geq s

User Submission Requirements

\{d, a, s, e\}

Slot Calculation Guidelines

Recommended Calculation Sequence

Get Current Slot $\text{current\_slot} = \text{getCurrentSlot()}$
Calculate Activation Slot $a = \text{current\_slot} + 9000 + 750 + \text{buffer}$
Calculate Depositing Slot $d = a - 9000 - 3000 - 750 - \text{buffer}$
Set Vesting Slots $e \geq s > a$

Slot-to-Timestamp Conversion

3000 = 20 minutes

750 = 5 minutes

9000 = 1 hour

Note for Quote mint: New endpoint only supports wSOL or USDC as Quote mint on mainnet. Devnet has more flexibility regarding the Quote mint; please reach out to the team.

Variable Definitions

Where:

$d$ = depositing_slot
$j$ = last_join_slot
$p$ = pre_activation_slot
$a$ = activation_slot
$s$ = start_vesting_slot
$e$ = end_vesting_slot

Important Reminders

A) Claim start time should NOT be earlier than Pool activation time

B) For Memecoins that want to permanently lock liquidity, lock it before Pool activation time

If the Alpha Vault is used for a Memecoin launch pool, and the project wants to permanently lock liquidity in the Memecoin pool, they should ideally lock the liquidity BEFORE the pool starts trading, so that swap fees from locked liquidity are captured the second trading starts. In a scenario where:

The pool started trading - t0
Liquidity gets deposited to the pool by the project, but not locked - t1
Subsequently, that liquidity is permanently locked by the project - t2

The project will not be able to claim swap fees earned from t1 to t2, since fees from t1 to t2 are assigned to the LP token before the LP token gets permanently locked. When the LP token gets locked, the earlier fees are locked along with it. The project will only be able to claim swap fees from locked liquidity starting from t2.

C) Quote token must be SOL or USDC

Only SOL or USDC is accepted as the quote token when initializing a Dynamic AMM or DLMM Pool with Alpha Vault.

D) For permissionless Alpha Vault (any wallet can deposit), is there a way to set an individual user cap?

Permissionless FCFS Alpha Vault allows you to set an individual cap, but this will be the same individual cap for everyone.

E) If no vesting is required, what should the startVestingPoint and endVestingPoint be?

startVestingPoint: Absolute value, the slot or timestamp that start vesting depend on the pool activation type. If no vesting is required, you should put this as 1 sec after the pool’s activationPoint
endVestingPoint: Absolute value, the slot or timestamp that end vesting depend on the pool activation type. If no vesting is required, this should be the same as startVestingPoint

F) How do you determine the Alpha Vault deposit close time?

Crank start point (time when vault buys tokens from the pool):

Timestamp-based: Crank start point = activationPoint - 3600
Slot-based: Crank start point = activationPoint - 9000

Vault deposit close point (time when vault deposits close):

Timestamp-based Vault: Deposit close point = Crank start point - 5 min
Slot-based Vault: Deposit close point = Crank start point - 750

G) How to crank the Alpha Vault so that it purchases the token from the pool?

Typically, we have a keeper that cranks the Alpha Vault to automatically purchase tokens from the pool. However, if the auto-crank fails, you can visit this fillVaultDlmm.ts repo and input your PublicKey.

Introduction

Quick Launch

Invent with Metsumi

Guides

Trading Terminals

Example Scripts

Example Timeline of an Alpha Vault

Code Examples

Creating an Alpha Vault

Creating a Merkle Root Config

Depositing into an Alpha Vault

Withdrawing from an Alpha Vault

Cranking an Alpha Vault

Claiming from an Alpha Vault

Close Escrow Account

Configure Alpha Vault Timings

DAMM v1 Pool Config List

DAMM v1 Vault Config List

Config endpoint based on Pool Activation Timing

Considerations for Slot Parameters

Alpha Vault Slot Progression

Current Slot Condition

Slot Constraints

User Submission Requirements

Slot Calculation Guidelines

Recommended Calculation Sequence

Slot-to-Timestamp Conversion

Variable Definitions

Important Reminders

A) Claim start time should NOT be earlier than Pool activation time

B) For Memecoins that want to permanently lock liquidity, lock it before Pool activation time

C) Quote token must be SOL or USDC

D) For permissionless Alpha Vault (any wallet can deposit), is there a way to set an individual user cap?

E) If no vesting is required, what should the startVestingPoint and endVestingPoint be?

F) How do you determine the Alpha Vault deposit close time?

G) How to crank the Alpha Vault so that it purchases the token from the pool?

Introduction

Quick Launch

Invent with Metsumi

Guides

Trading Terminals

​Example Timeline of an Alpha Vault

​Code Examples

​Creating an Alpha Vault

​Creating a Merkle Root Config

​Depositing into an Alpha Vault

​Withdrawing from an Alpha Vault

​Cranking an Alpha Vault

​Claiming from an Alpha Vault

​Close Escrow Account

​Configure Alpha Vault Timings

DAMM v1 Pool Config List

DAMM v1 Vault Config List

​Config endpoint based on Pool Activation Timing

​Considerations for Slot Parameters

​Alpha Vault Slot Progression

​Current Slot Condition

​Slot Constraints

​User Submission Requirements

​Slot Calculation Guidelines

​Recommended Calculation Sequence

​Slot-to-Timestamp Conversion

​Variable Definitions

​Important Reminders

​A) Claim start time should NOT be earlier than Pool activation time

​B) For Memecoins that want to permanently lock liquidity, lock it before Pool activation time

​C) Quote token must be SOL or USDC

​D) For permissionless Alpha Vault (any wallet can deposit), is there a way to set an individual user cap?

​E) If no vesting is required, what should the startVestingPoint and endVestingPoint be?

​F) How do you determine the Alpha Vault deposit close time?

​G) How to crank the Alpha Vault so that it purchases the token from the pool?

Example Timeline of an Alpha Vault

Code Examples

Creating an Alpha Vault

Creating a Merkle Root Config

Depositing into an Alpha Vault

Withdrawing from an Alpha Vault

Cranking an Alpha Vault

Claiming from an Alpha Vault

Close Escrow Account

Configure Alpha Vault Timings

Config endpoint based on Pool Activation Timing

Considerations for Slot Parameters

Alpha Vault Slot Progression

Current Slot Condition

Slot Constraints

User Submission Requirements

Slot Calculation Guidelines

Recommended Calculation Sequence

Slot-to-Timestamp Conversion

Variable Definitions

Important Reminders

A) Claim start time should NOT be earlier than Pool activation time

B) For Memecoins that want to permanently lock liquidity, lock it before Pool activation time

C) Quote token must be SOL or USDC

D) For permissionless Alpha Vault (any wallet can deposit), is there a way to set an individual user cap?

E) If no vesting is required, what should the startVestingPoint and endVestingPoint be?

F) How do you determine the Alpha Vault deposit close time?

G) How to crank the Alpha Vault so that it purchases the token from the pool?
